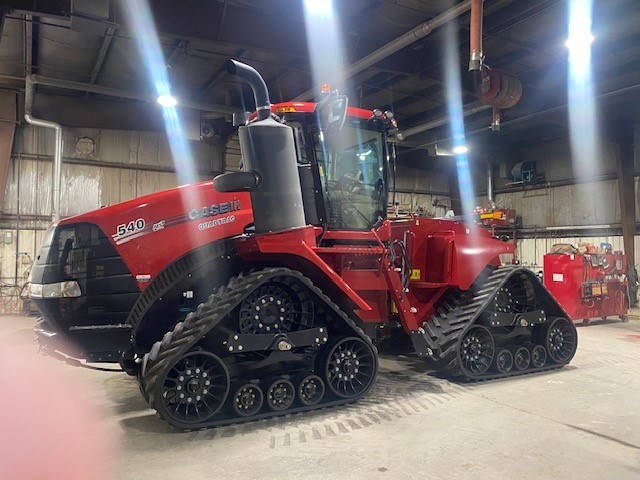

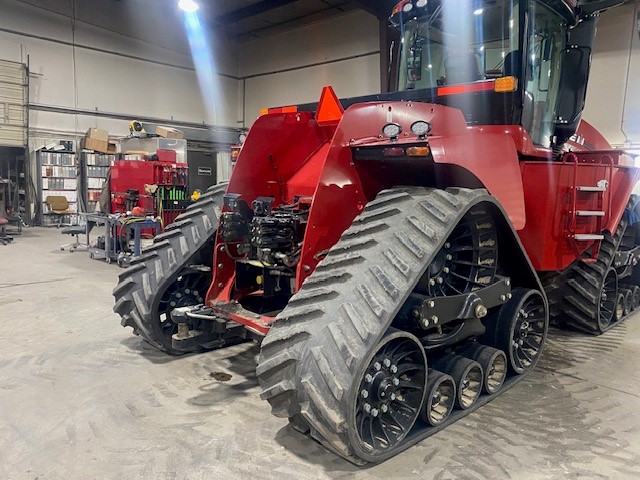

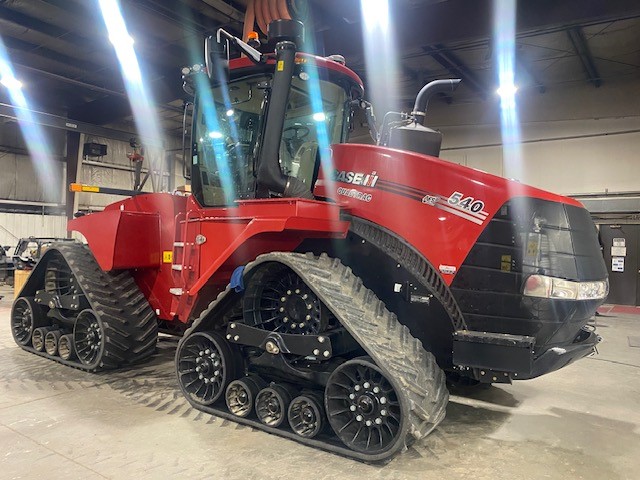

2022 Case IH STEIGER 540 TK AFS C. Tractor 4WD

Usage

• Engine Hours: 510.0

Options / Details

A list of options and details specific to the piece of equipment listed for sale on this page.

• *STEIGER 540 TK AFS C.
• *HHP,LuxCab,PS,QT / Selecting a Package will remove Custom premium price / / Includes: / / Luxury Cab, PowerDrive, Quadtrac / / Engine Brake, Cold Weather Starting Aid, Front Bumper weight, / True Ground Speed Radar, RH armrest , AFS Pro 1200, / High Capacity Hydraulic Pump, Power Beyond Supply and Return, / Performance Lighting, Dual Beacon, LED Cab Roof Worklights, / Luxury Performance Cab / / Selectable Options: *Some selections are LIMITED for choice* / Tracks, / PTO, Hitch, Drawbar, Rea *HHP,LuxCab,PS,QT / Selecting a Package will remove Custom premium price / / Includes: / / Luxury Cab, PowerDrive, Quadtrac / / Engine Brake, Cold Weather Starting Aid, Front Bumper weight, / True Ground Speed Radar, RH armrest , AFS Pro 1200, / High Capacity Hydraulic Pump, Power Beyond Supply and Return, / Performance Lighting, Dual Beacon, LED Cab Roof Worklights, / Luxury Performance Cab / / Selectable Options: *Some selections are LIMITED for choice* / Tracks, / PTO, Hitch, Drawbar, Rear Remotes, Parallell Flow Hyd, / Autoguidance, Connectivity, Telematics
• *AFS VectorPro Medium - GPS Receiver / includes Medium accuracy upgrade / capable of running AFS 2 with applicable subscription
• *AFS Pro 1200 / 12 IN. DISPLAY W/MOUNTING
• *PCM 4G USA / 4G P&CM controller for USA Market / Verizon SIM / This device provides optimal coverage in a large majority of / the USA, however for areas with poor or no Verizon cellular / coverage order 429554. NOT FOR CANADIAN MARKETS
• *TEL 5YR SUB FT RDY / 5 YR ADVANCED / includes 2-way file transfer, Remote Display Viewing, Remote / Service Support Remote Software Updates (RSU)
• *Luxury Technology Cab / Includes all features listed in standard features plus the following: / - Red and Tan leather **POSITIVE RESPONSE** heated and / ventilated / seat / - Slide out lower cushion with height and length adjustment / - Red and Tan leather instructional seat / - Leather wrapped steering wheel / - Leather wrapped armrest / - Carpet floor mat / - A post display mount / - roof mounted mirrors with Electric arm Adjustment / - 1 front Grille and 1 rear roof mounted camera (displays *Luxury Technology Cab / Includes all features listed in standard features plus the following: / - Red and Tan leather **POSITIVE RESPONSE** heated and / ventilated / seat / - Slide out lower cushion with height and length adjustment / - Red and Tan leather instructional seat / - Leather wrapped steering wheel / - Leather wrapped armrest / - Carpet floor mat / - A post display mount / - roof mounted mirrors with Electric arm Adjustment / - 1 front Grille and 1 rear roof mounted camera (displays in Pro 1200)
• *PERFORMANCE PLUS ROOF HP / For models 500, 540, 580, and 620 high power wheeled tractors / Includes all lights in the Preformance Lighting Package (449678) / PLUS 360 ROOF PACKAGE / 6 LED cab roof work lights, mounted in pairs on each side of the / cab and two front facing roof mounted lights.
• *Less HID work lights / Less light extension
• *Dual Beacon Light / Dual LED Beacon lights / Mounting brackets installed at the factory, lights shipped in cab for / dealer installation.
• *ISO BUS Class II / ISO BUS REAR BREAKAWAY SOCKET 11783
• *AFS ACCU TURN / AFS ACCU-Turn PRO / This allows for one "button push" headland turning for perfect / turns on every pass. / Each turn can be selected automatically or manually to provide the / best solution to make the shortest, most consistent, turns.
• *Cold Weather Starting Aid Pack / Consists of 120V, 1500W engine block coolant heater and / transmission oil heat maintainer.
• *Engine Compression Brake / Includes control system and factory installed engine brake. / Recommended for large tow behind Implements, grain carts / and slurry tankers
• *Std Less Drive Wheel scrapers / Std less drive wheel scraper
• *True Ground Speed Sensor / Provides radar measurement of ground speed to aid in accurate / application of chemicals and other speed sensitive operations. / (Required to monitor fuel usage, area covered, fuel usage per / acre, area covered per hour, distance covered, distance covered / per minute, slip control and slip limit control)
• *Standard less backup alarm
• *No hydraulic trailer brakes
• *Cat 5 Drawbar less 3 Point / without three point hitch (2.75" drawbar pin diameter with / 15,000 lb. vertical tongue weight capacity) / For 470, 500, 540, 580, 620 Quadtrac Models / Ground clearance 19.6" / width 5" / thickness 3" / pin size 2.75" / Must order 47477445- Cat 5 to 4 Conversion kit / from Parts Supplied to go from CAT 5 to CAT 4 drawbar
• *TWO PUMPS / TwinFlow™ Hydraulic System / 113 GPM 427L/m / hydraulic flow is supplied controlled for left hand side hydraulic remotes by main pump and right hand side remotes are supplied by / secound pump / Twin flow can be converted to Parrallel Flow where all hydraulic / flow is supplied to all remote valves equally by both pumps / Conversion kit is shipped with tractor from factory (in cab) / with 1/2 in. ISO Couplers. / Available with/without 3 pt. Hitch and PTO options. /
• *Less high-flow hydraulic pump / Cat III Conversion Kit
• *6 REMOTES COMBO COUPLER / 6 spool hydraulic valve assembly with a combination of 1/2" and / 3/4" ISO couplers. / Valve positions 1, 2, 5 & 6 are equipped with 1/2" couplers. / Valve positions 3 & 4 are equipped with 3/4" couplers. / Requires 464428 Parallel/Twin Flow or / 464429 Twin Flow Smart Torque Pump / not available with three point hitch
• *Power Beyond Supply and Return / Motor return with 2 hydraulic 3/4 in. couplers and hose tips. / - Hydraulic Supply / - Hydraulic Return / - Load Sensing Signal / - Hydraulic Motor Case Drain
• *1000 RPM Independent PTO / Power Take - Off 1.75 in (44.5mm) shaft / Powershift only
• *High CapBar w/ diff lock / Includes hydraulic differential lock

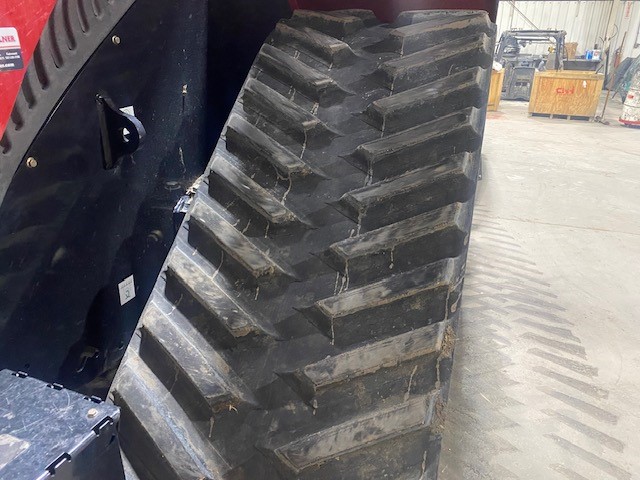

• *30" Camso Ag Tracks / 4 yr Track warranty for AG applications only / Travel Speed of 0 to 25 mph
• *Less Rear Wheel Spacers
• *Tow cable for HD tractor / Extends to front of tractor. / NOTE: Tow Cable requires tractor be equipped with Front / Bumper Weight (449114 or 449068) / or Grill Protection Plate (449095 or449067).
• *NO TIRE PRESSURE MONITOR SYSTEM
• *Aux.Fuel Tank HHP / For 470, 500 and 540 Quadtrac versions / (2) saddle tanks, 145 gallons (549L) additional fuel / Total fuel capacity 455 gallons (1,722L)
• *NO TRANSIT COATING
• *Front Bumper Weight / For 470, 500, 540, 580, and 620 Quadtrac models / 1629 lbs.
• *North American English
